OEM Laser Burn-Out Bonded Terry Shorts

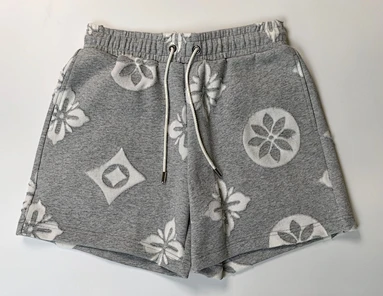

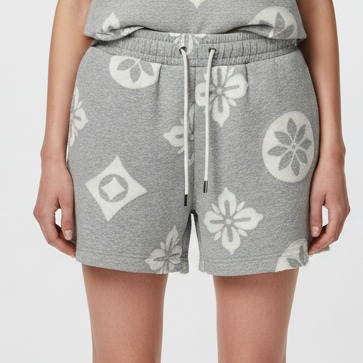

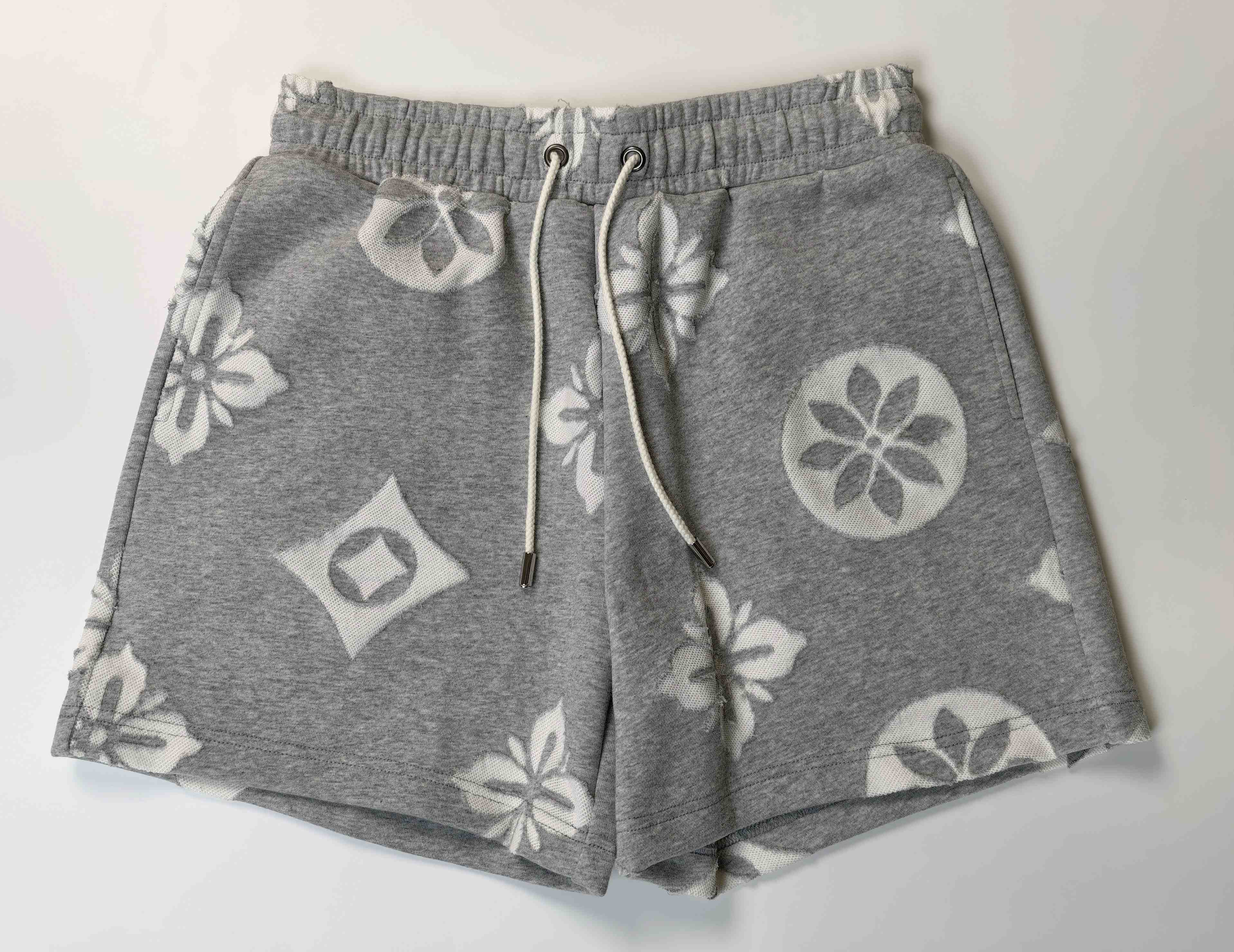

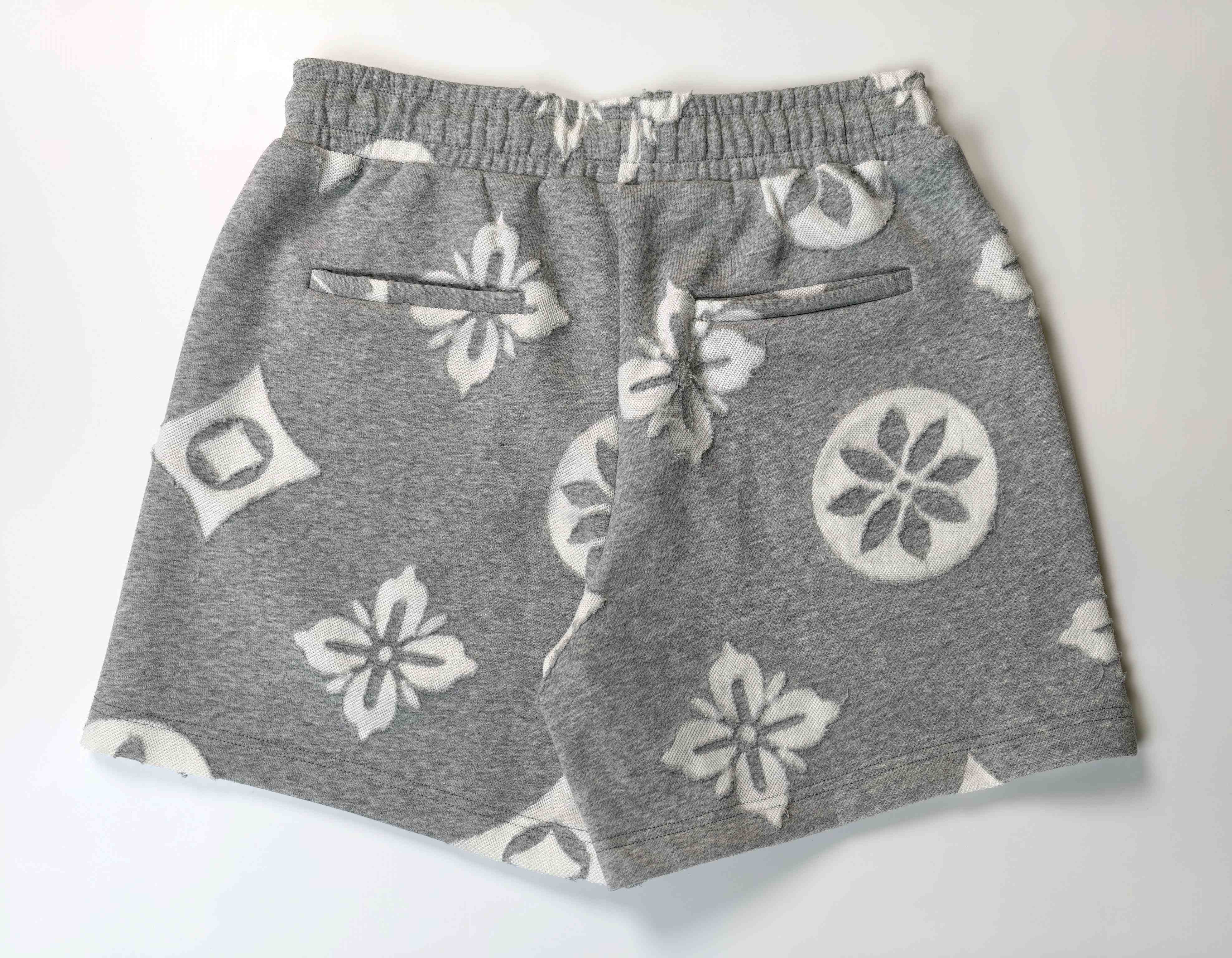

These laser burn-out bonded terry shorts combine a substantial grey base with oversized floral and geometric motifs created across the surface layer. A wide elastic waistband, contrast drawcord and side pockets support everyday function, while the bonded construction gives the leg more structure. The style suits premium loungewear, statement matching sets and transitional casual collections.

440 GSM Bonded Terry with a Structured Handfeel

Two Layers Working as One Fabric

The cotton-polyester surface provides the visible terry character, while the polyester backing adds body and dimensional stability. At 440 GSM, the combined material is substantially heavier than standard sweat-shorts fabric. Pattern shape, seam allowance and waistband construction should account for the added thickness.

Monitoring Bond Strength After Processing

The adhesive or bonding system must withstand laser treatment, sewing, laundering and repeated flexing. Bulk testing should check delamination, bubbling and edge separation. Special attention is required around pocket openings, crotch seams and hems where the layers are repeatedly folded or stressed.

Laser Burn-Out Depth and Motif Clarity

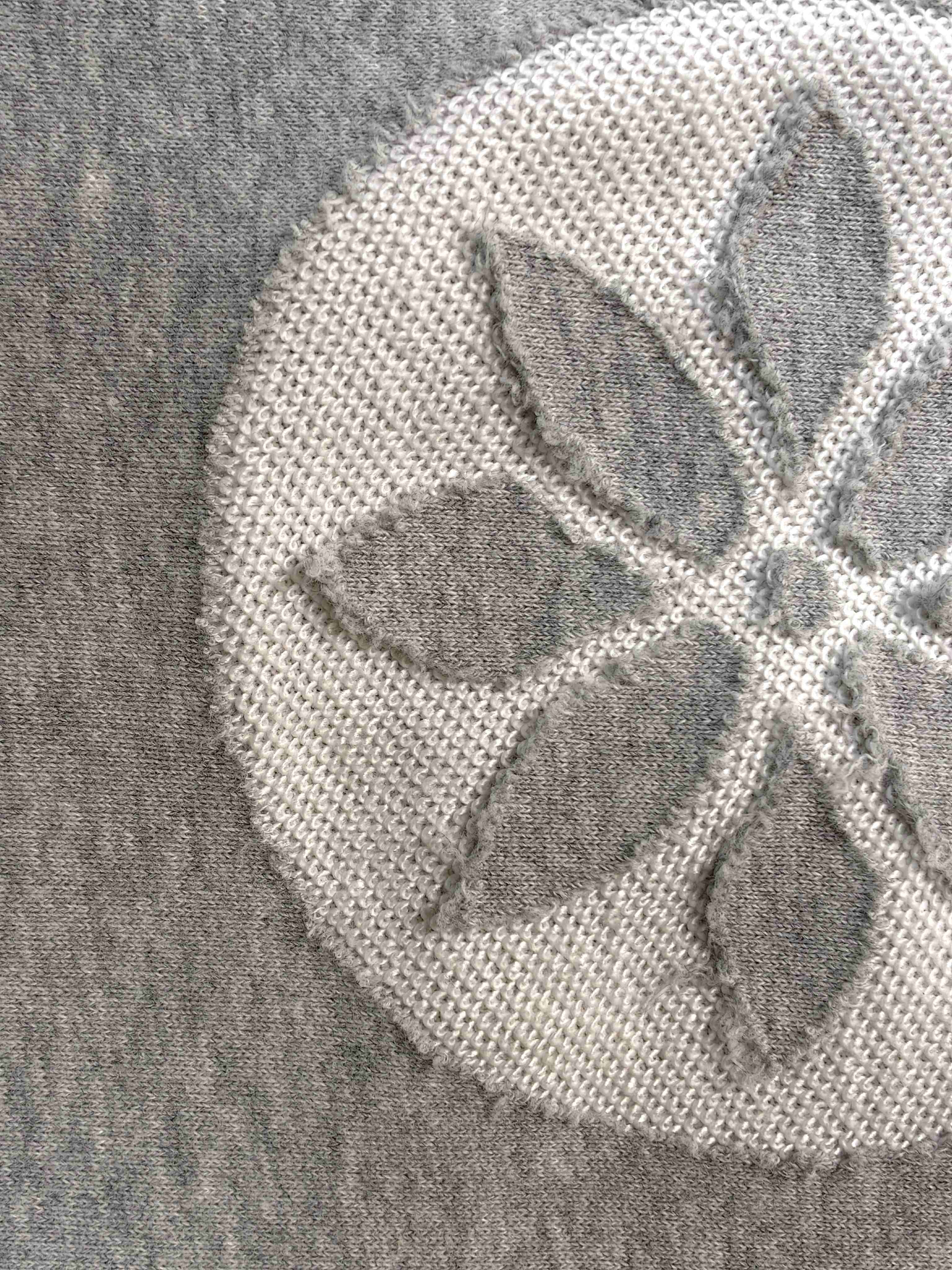

The burn-out process creates pale motifs by altering the surface layer rather than applying a conventional surface print. Laser power, speed and focus must be balanced so the pattern remains clear without damaging the polyester backing. A sealed strike-off should define edge sharpness, tonal contrast and acceptable shading variation.

Protecting the Backing During Surface Treatment

Excessive laser penetration may weaken the face, expose the backing irregularly or create brittle areas. Testing should confirm that the design does not reduce tear strength or create scorched edges. The reverse layer should remain smooth and comfortable, with no visible heat distortion beneath heavily processed motifs.

Waistband and Drawcord Control on Heavy Fabric

Distributing Gathering Without Excess Bulk

The elastic waistband must gather the 440 GSM body evenly without creating a thick ridge at the waist. Elastic width, insertion ratio and stitch channels should be approved on a fitted sample. The drawcord exit points also require reinforcement because of the fabric weight.

Keeping Pockets and Leg Openings Flat

Side pockets should remain accessible without adding unnecessary hip volume. Pocket bags and seam grading should reduce bulk at the opening. The leg hem should lie level without flaring, twisting or showing separation between bonded layers.

ODM Options for Laser Burn-Out Terry Shorts

ODM shorts development may include:

• Custom floral, geometric or logo-based burn-out motifs
• Alternative surface and backing color combinations
• Adjustments to rise, inseam, leg width and waistband depth
• Matching sweatshirts, tops or bonded-terry separates
• Custom drawcords, labels and packaging

Buyer FAQs for Bonded Burn-Out Shorts

Is the pattern printed with ink?

No. The supplied process is laser burn-out printing, which modifies the surface layer to create the motif.

Can the laser damage the polyester backing?

It can if the process is too aggressive. Strike-off approval should confirm penetration depth and backing protection.

Is 440 GSM the combined fabric weight?

Yes. The specification refers to the bonded surface and backing together.

What should be confirmed before manufacturing?

Priority checks include bond strength, laser depth, motif clarity, waistband bulk, pocket stability, shrinkage and finished measurements.
